Maximum protection with caps and protectors for every need.

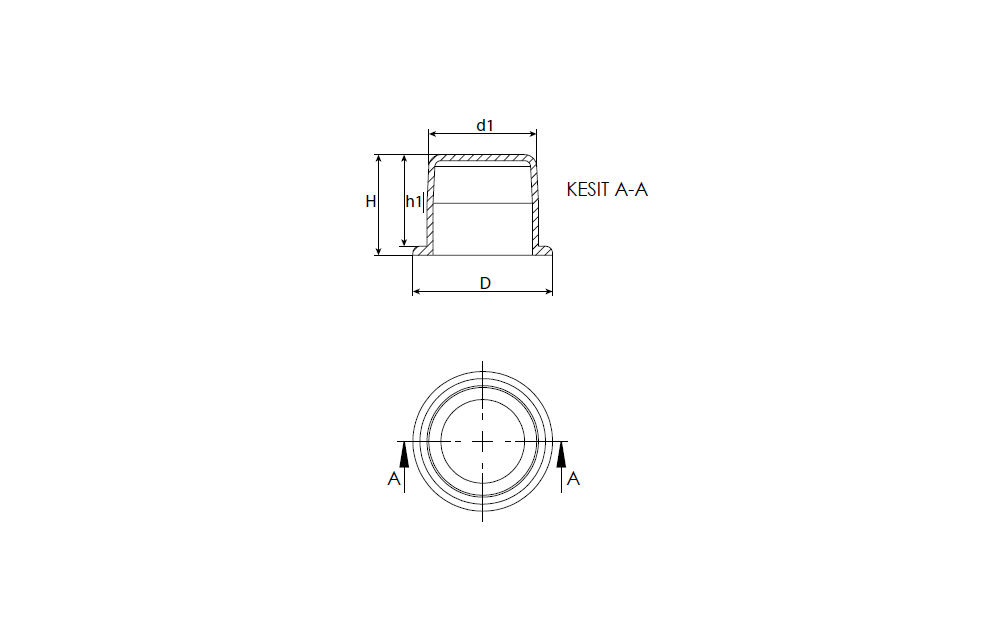

| PLASTLOCK | ÖLÇÜ (mm) / DIMENSIONI (mm) | |||||
| KOD / CODE | GAZ / GAS | AA | D | d1 | H | h1 |
| PLOCK00046 | G 3/8 " | - | 18,5 | 15,4 | 10,2 | 9 |
| PLOCK00047 | G 1/2 “ | - | 22,5 | 19,1 | 13,8 | 12 |
| PLOCK00048 | G 3/4 “ | - | 28 | 24,8 | 13,8 | 13 |
| PLOCK00049 | G 1 “ | - | 36,5 | 30,7 | 16 | 14 |
| PLOCK00050 | G1 1/4 “ | - | 48 | 39,7 | 16 | 14 |
| PLOCK00051 | G1 1/2 “ | - | 52 | 45,5 | 17 | 15 |
| KOD / CODE | MM | AA | D | d1 | H | h1 |
| PLOCK00052 | 12,2 | - | 15,8 | 12,2 | 11 | 10 |
| PLOCK00053 | 15,4 | - | 19,2 | 15,4 | 12,3 | 11,5 |
| PLOCK00054 | 17,9 | - | 23,2 | 17,9 | 12 | 10 |
| PLOCK00055 | 20 | - | 24 | 20 | 16,5 | 14,5 |
| PLOCK00056 | 20,2 | - | 29 | 20,2 | 14 | 12 |
| PLOCK00057 | 21,5 | - | 25 | 21,5 | 15,2 | 14 |
| PLOCK00058 | 24,3 | - | 26 | 24,3 | 11,5 | 10 |
| PLOCK00059 | 26,8 | - | 33,5 | 26,8 | 23 | 21 |
| PLOCK00060 | 27,7 | - | 32,5 | 27,7 | 20,4 | 19,6 |
| PLOCK00061 | 30,5 | - | 36,5 | 30,5 | 16 | 14 |
| PLOCK00062 | 33,1 | - | 38,8 | 33,1 | 10,5 | 8,5 |
| PLOCK00063 | 34,4 | - | 38,5 | 34,4 | 22,2 | 20 |
| PLOCK00064 | 22 | - | 24,5 | 22 | 15 | 14 |
| PLOCK00065 | 9 | - | 15,8 | 9 | 9 | 7 |
