Maximum protection with caps and protectors for every need.

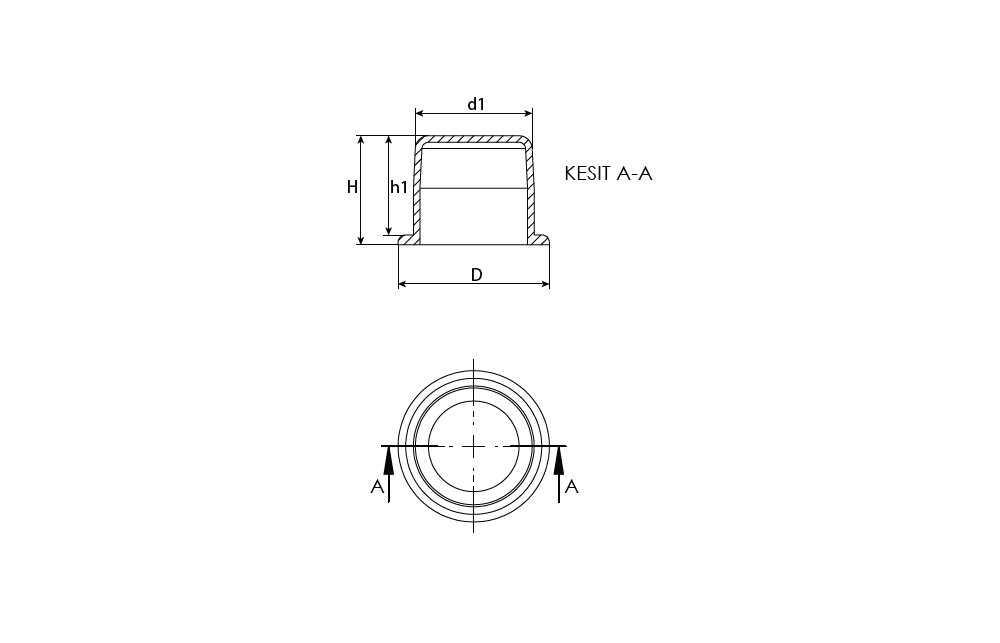

| PLASTLOCK | ÖLÇÜ (mm) / DIMENSIONI (mm) | |||||
| KOD / CODE | GAZ / GAS | AA | D | d1 | H | h1 |
| PLOCK00170 | G 1/8 “ | - | 11,8 | 8,9 | 6 | 5 |
| PLOCK00171 | G 1/4 " | - | 14 | 11,9 | 10,5 | 9 |
| PLOCK00172 | G 3/8 " | - | 18,5 | 15,4 | 10,2 | 9 |
| PLOCK00173 | G 1/2 “ | - | 22 | 19,1 | 13,8 | 12 |
| PLOCK00174 | G 3/4 “ | - | 28 | 24,8 | 13,8 | 13 |
| PLOCK00175 | G 1 “ | - | 36,5 | 30,7 | 16 | 14 |
| PLOCK00176 | G1 1/4 " | - | 48 | 39,7 | 16 | 14 |
| PLOCK00177 | G1 1/2 “ | - | 52 | 45,5 | 17 | 15 |
| KOD / CODE | METRİK/METRIC | AA | D | d1 | H | h1 |
| PLOCK00178 | M10x1,5 | - | 11,8 | 8,7 | 4,5 | 5,7 |
| KOD / CODE | MM | AA | D | d1 | H | h1 |
| PLOCK00179 | 9 | - | 15,8 | 9 | 9 | 7 |
| PLOCK00180 | 13,5 | - | 16 | 13,5 | 10,4 | 9,4 |
| PLOCK00181 | 15,4 | - | 19,2 | 15,4 | 12,5 | 11,5 |
| PLOCK00182 | 17,5 | - | 20 | 17,5 | 15,5 | 14,5 |
| PLOCK00183 | 19 | - | 22 | 19 | 12,3 | 11,5 |
| PLOCK00184 | 21,5 | - | 26 | 21,5 | 17 | 15,5 |
| PLOCK00185 | 27,7 | - | 32,5 | 27,7 | 19,3 | 18 |
| PLOCK00186 | 33,1 | - | 38,8 | 33,1 | 10,5 | 8,5 |
