Maximum protection with caps and protectors for every need.

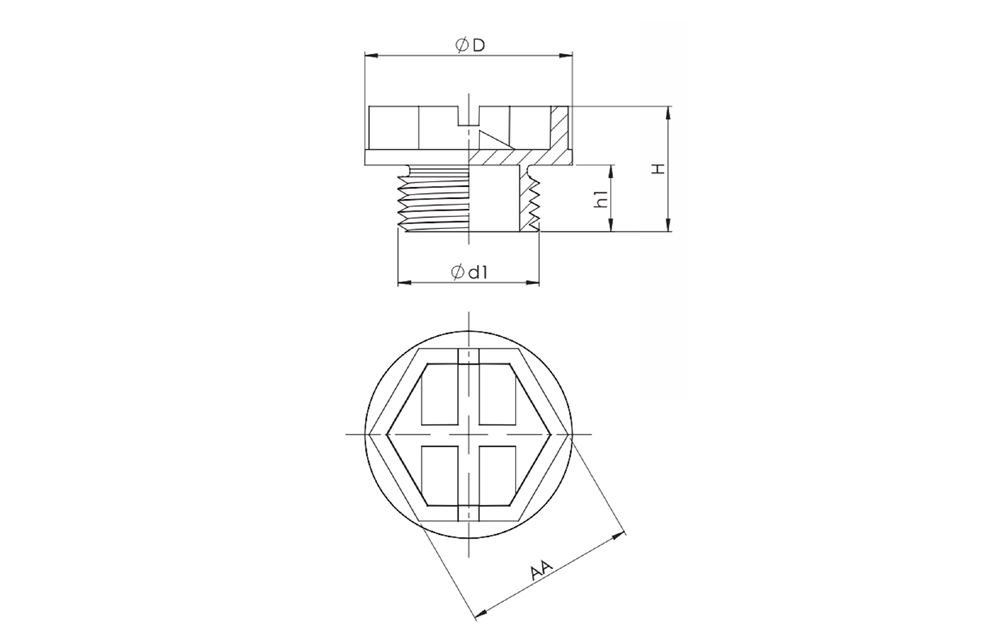

| PLAST LOCK | ÖLÇÜ (mm) / DIMENSIONI (mm) | |||||
| KOD / CODE | GAZ / GAS | AA | D | d1 | H | h1 |
| PLOCK00121 | G 1/4 " | 16,40 | 20,90 | 12,50 | 16,00 | 8,50 |
| PLOCK00122 | G 3/8 " | 15,80 | 21,30 | 16,15 | 16,00 | 8,50 |
| PLOCK00123 | G 1/2 " | 21,50 | 28,90 | 20,00 | 19,20 | 11,20 |
| PLOCK00124 | G 3/4 " | 24,40 | 32,30 | 25,80 | 17,70 | 10,50 |
| PLOCK00125 | G 1 " | 29,50 | 39,00 | 32,00 | 21,30 | 11,70 |
| PLOCK00126 | G1 1/4 " | 36,50 | 48,00 | 40,10 | 22,60 | 13,50 |
| PLOCK00127 | G1 1/2 “ | 41,40 | 55,00 | 46,30 | 22,60 | 13,00 |
| KOD / CODE | METRİK/METRIC | AA | D | d1 | H | h1 |
| PLOCK00128 | M12x1.5 | 15,8 | 21,3 | 11,5 | 15,7 | 8,5 |
| PLOCK00129 | M14x1.5 | 15,8 | 21,3 | 13,5 | 15,7 | 8,5 |
| PLOCK00130 | M16x1.5 | 15,8 | 21,3 | 15,5 | 15,7 | 8,5 |
| PLOCK00131 | M18x1.5 | 21,5 | 28,9 | 18,2 | 19,2 | 10,9 |
| PLOCK00132 | M20x1.5 | 21,5 | 28,9 | 19,4 | 19,2 | 11,2 |
| PLOCK00133 | M22x1.5 | 21,5 | 28,9 | 21,8 | 18 | 10,2 |
| PLOCK00134 | M24x1.5 | 21,5 | 28,9 | 25,5 | 18 | 10,2 |
| PLOCK00135 | M39x4 | 36,5 | 48 | 38 | 30 | 22 |
| PLOCK00136 | M45x2 | 41,4 | 54,8 | 43,4 | 22,7 | 13 |
| PLOCK00137 | M10x1 | 15,8 | 21,3 | 9,6 | 14,5 | 7,2 |
| PLOCK00138 | M12x1 | 15,8 | 21,3 | 11,7 | 14,5 | 7,2 |
| KOD / CODE | UNF | AA | D | d1 | H | h1 |
| PLOCK00139 | 3.04.2016 | 21,5 | 28,9 | 12,6 | 19 | 11 |
